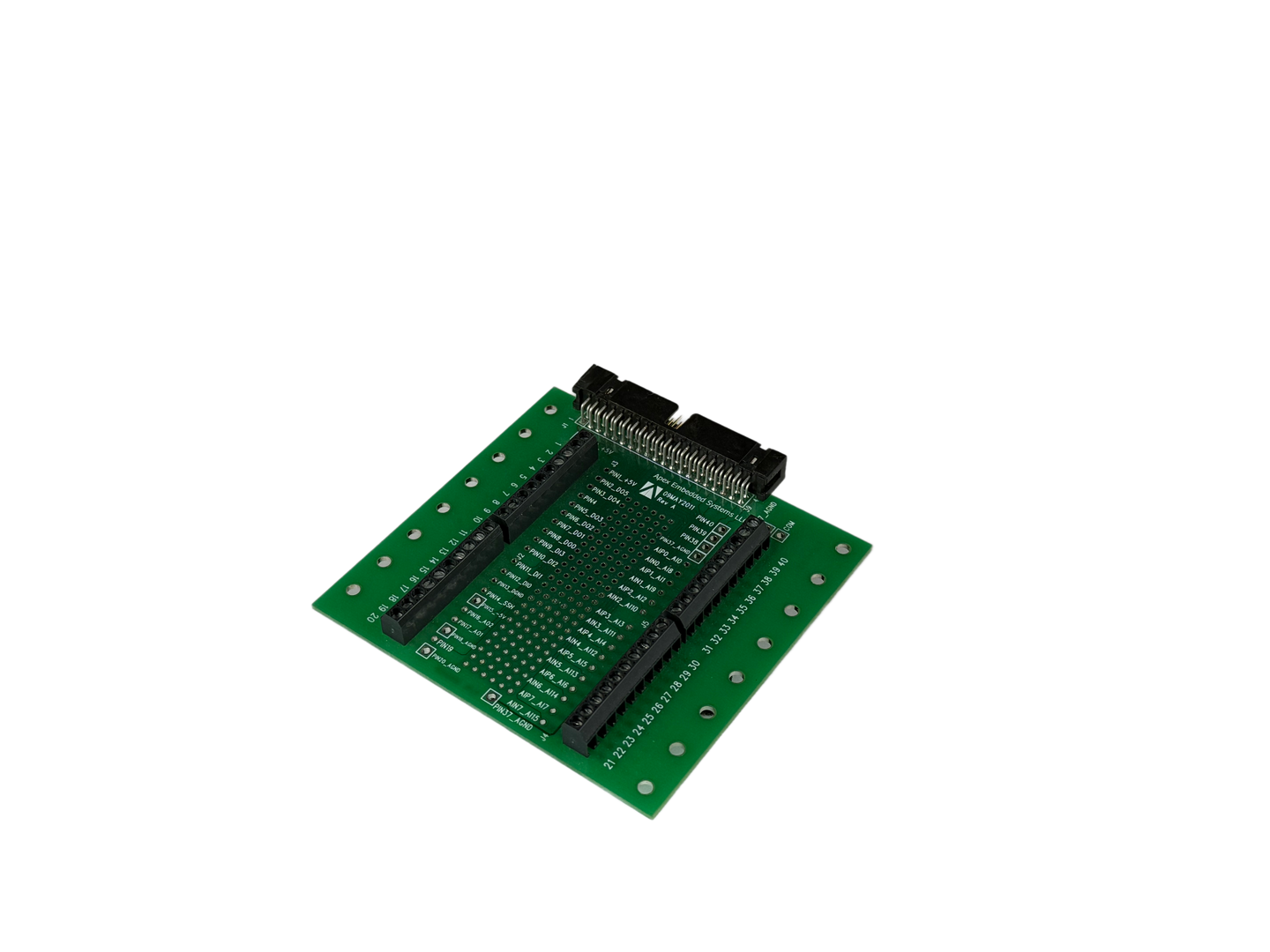

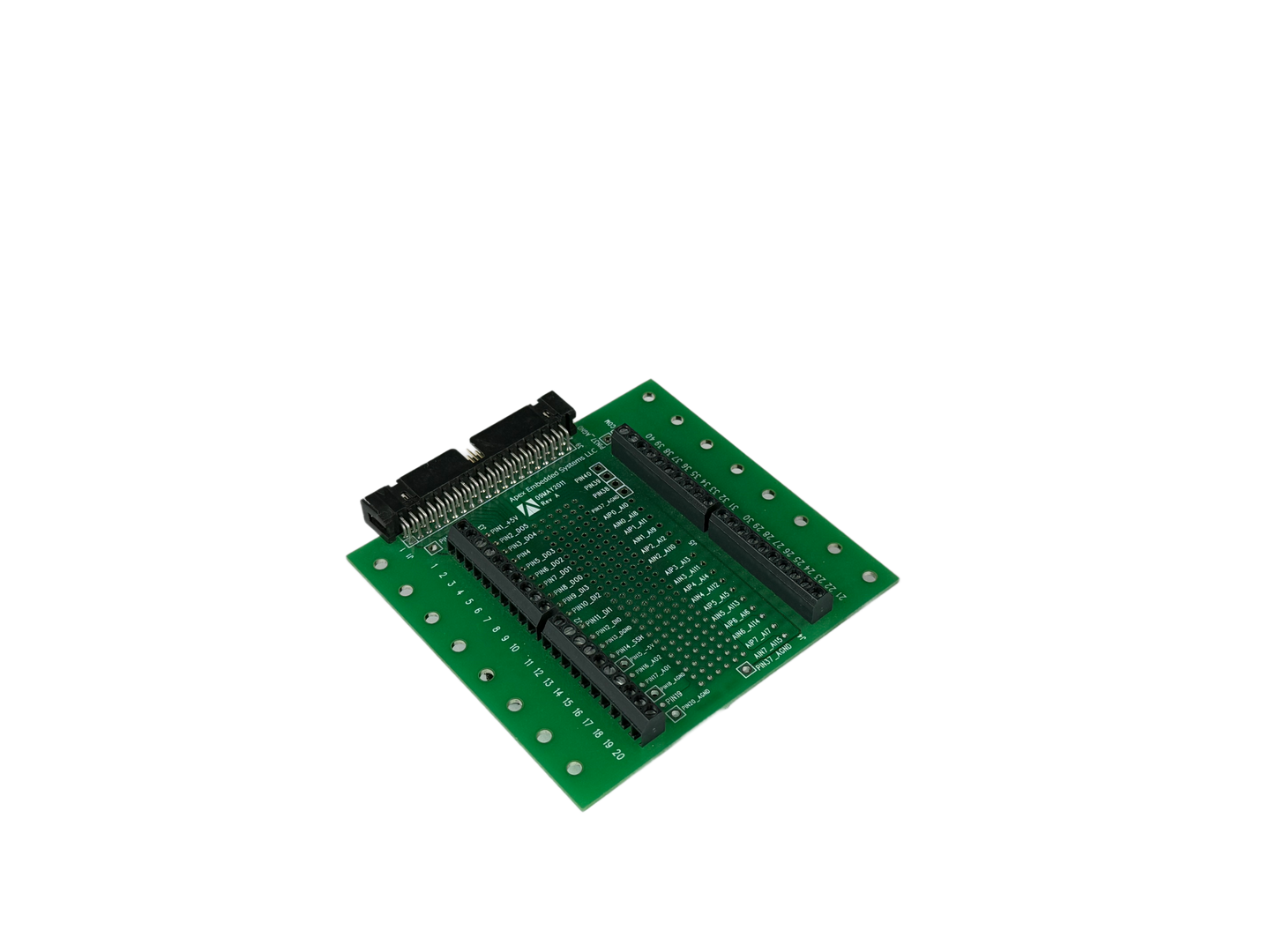

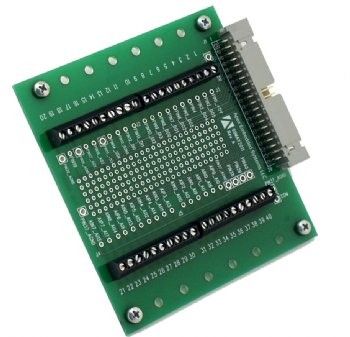

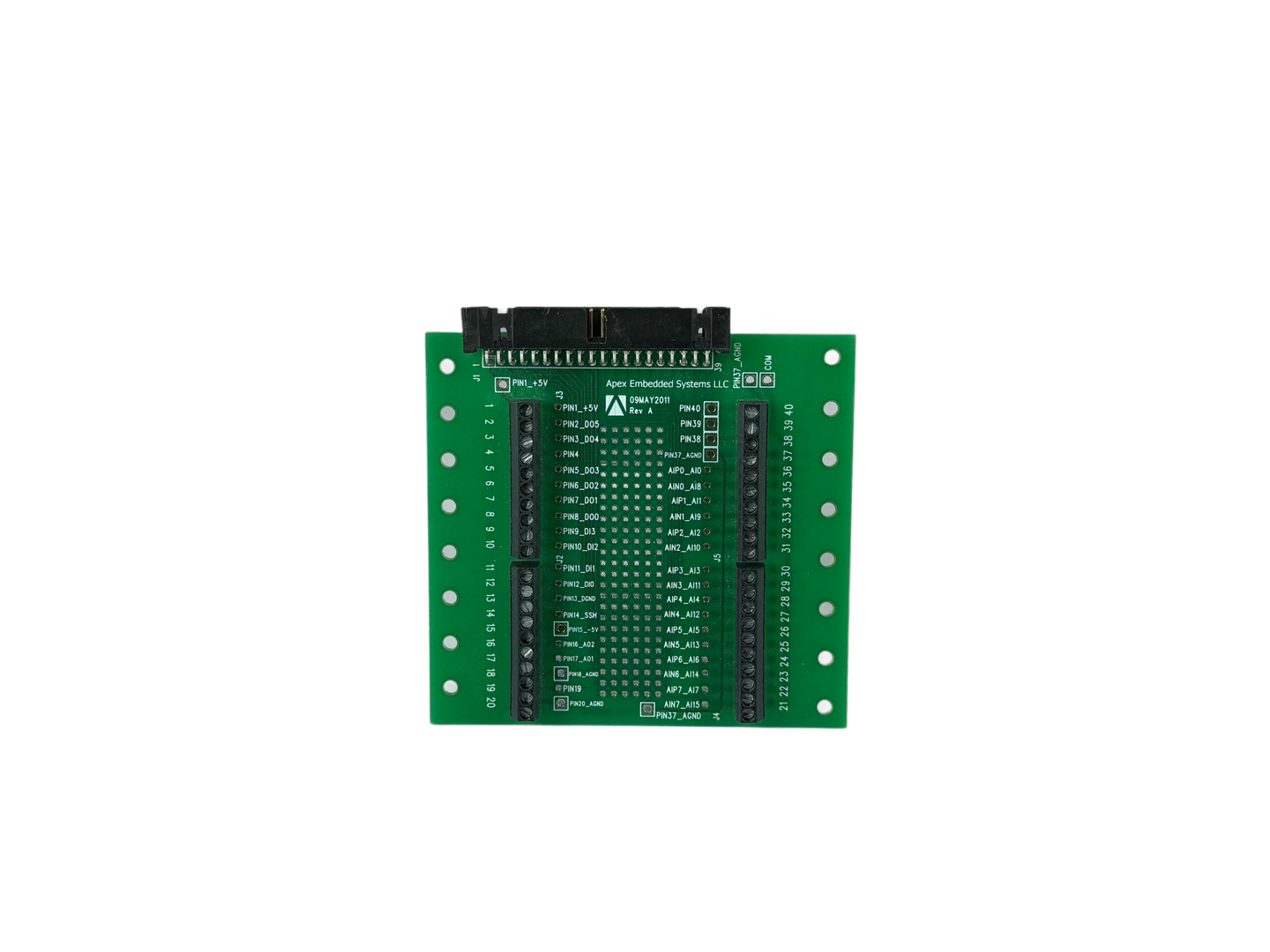

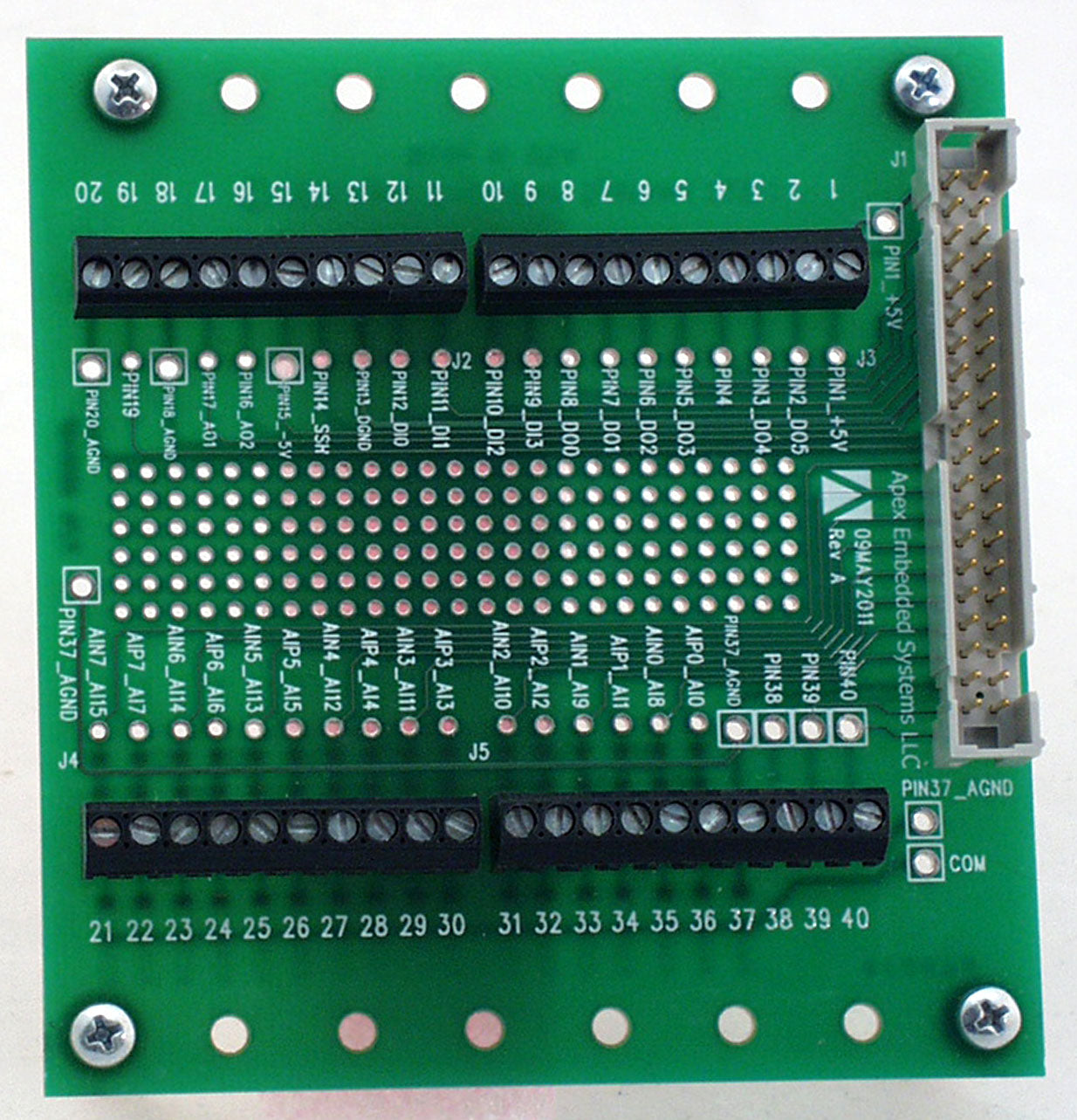

This is the equivalent of a super-hero terminal breakout board. Not only can it be used with the STX104, but it can be used for so much more! It can withstand temperatures from -40°C to 85°C, there are few, if any, terminal boards that can do that! This terminal board has one of the lowest height profiles available, less than 0.6 inches when using right angle connector at location J1. Be a super hero and save the day!
Application uses
Ribbon cable to wire interface (2.54mm / 0.1" pitch connector)
STX104 break out terminal board with complete signal labeling, easily accessible probe points to all ribbon cable signals
Signal breakout and probing (scope probes fit into plated holes next to screw terminals)

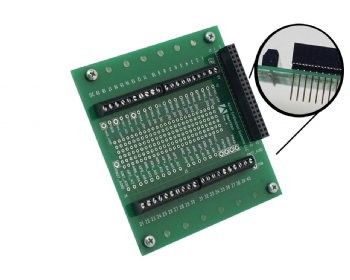

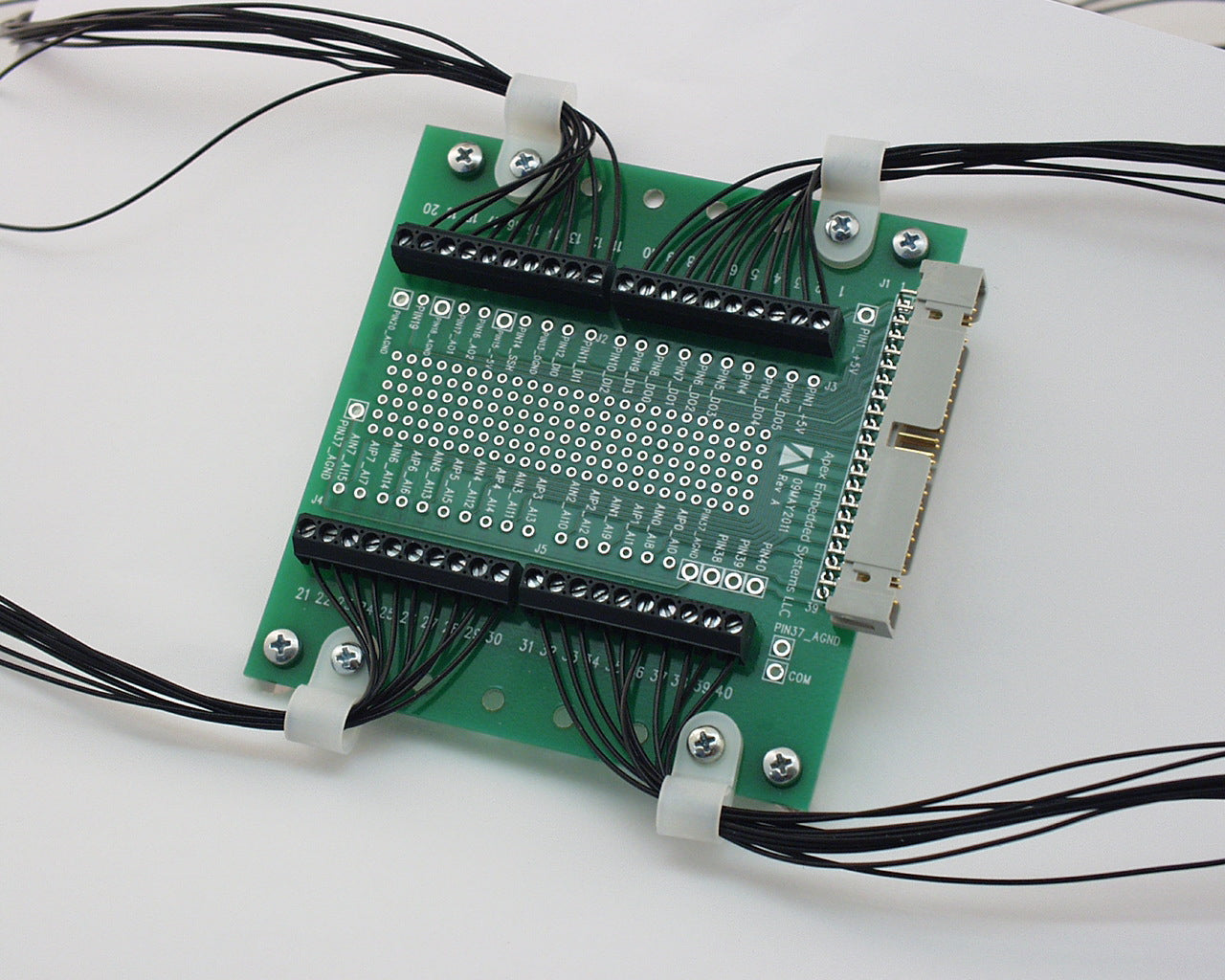

Cable breakouts: solder cable wires to J1 location (without connector) and becomes a custom cable breakout terminal board
Prototyping platform
PC/104 stackable!
Cable breakout in wide operating temperature conditions
Low volume production customization options available
Detailed features
Mechanical Mounting Options: PC/104 Stack or stand alone via four spacers.
Prototyping Region: Use to qualify any additional STX104 front-end electronics you might need.

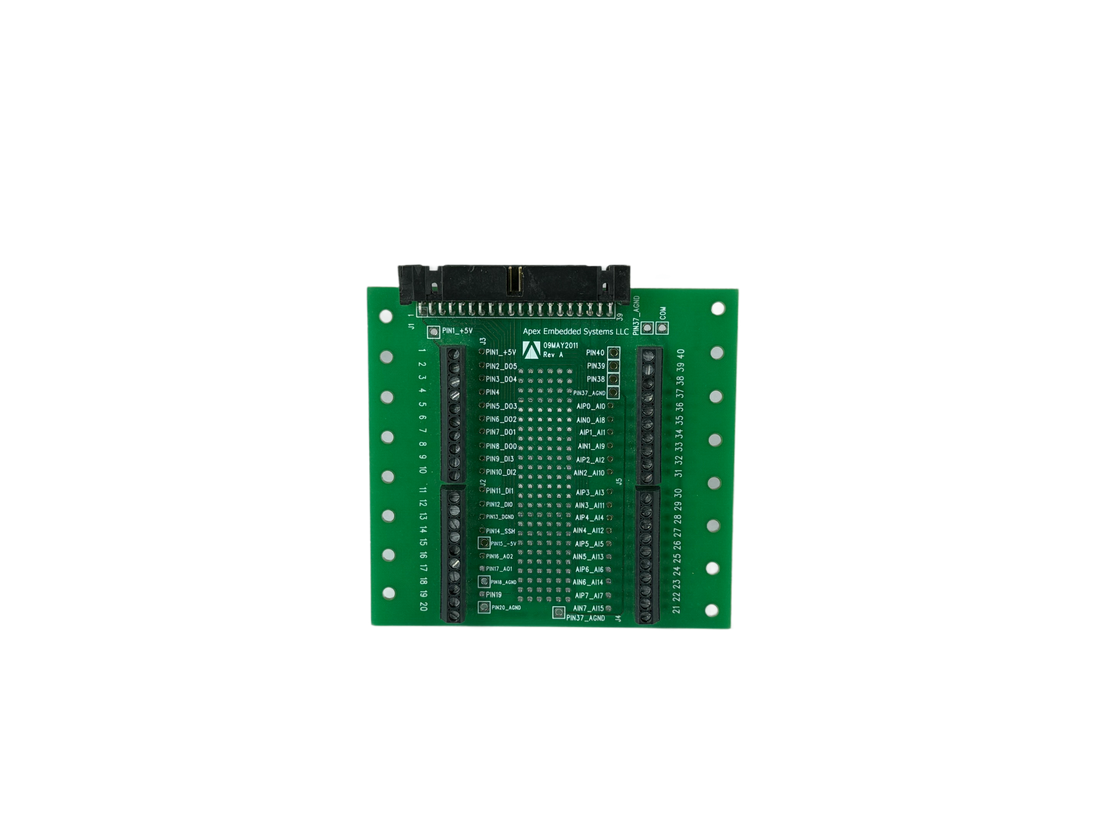

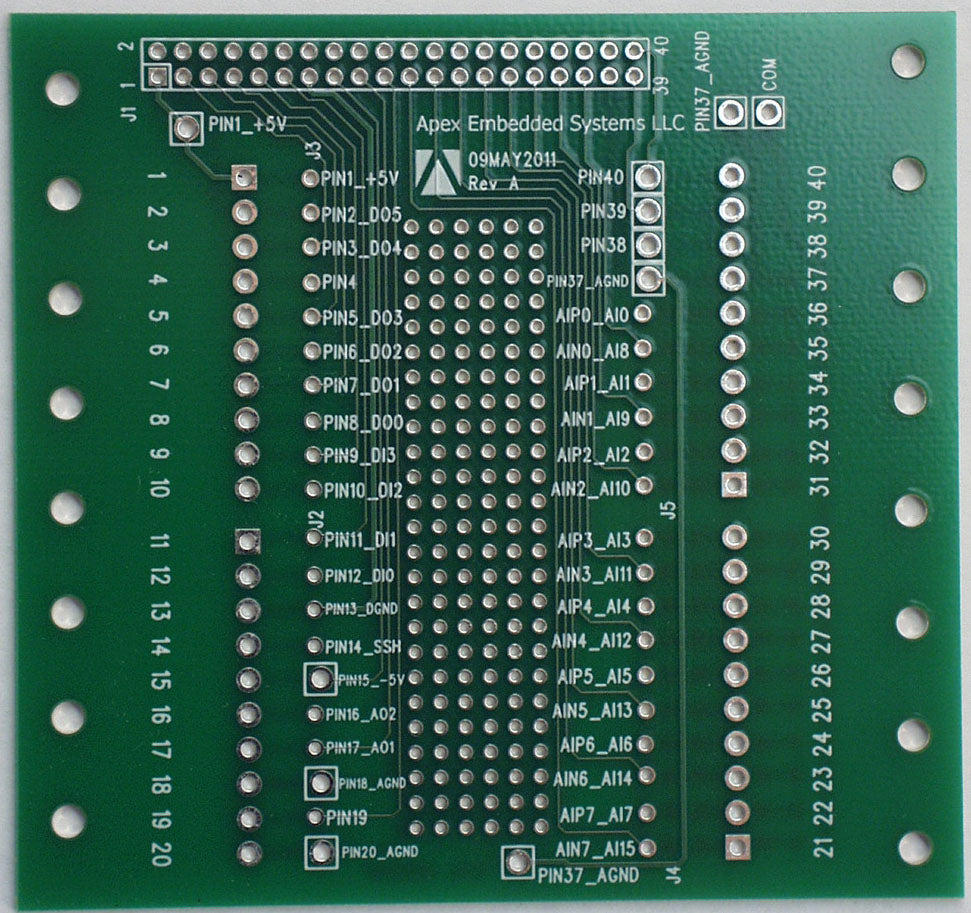

Signals Labeled Clearly: Don’t have to reference any documentation when using with STX104.

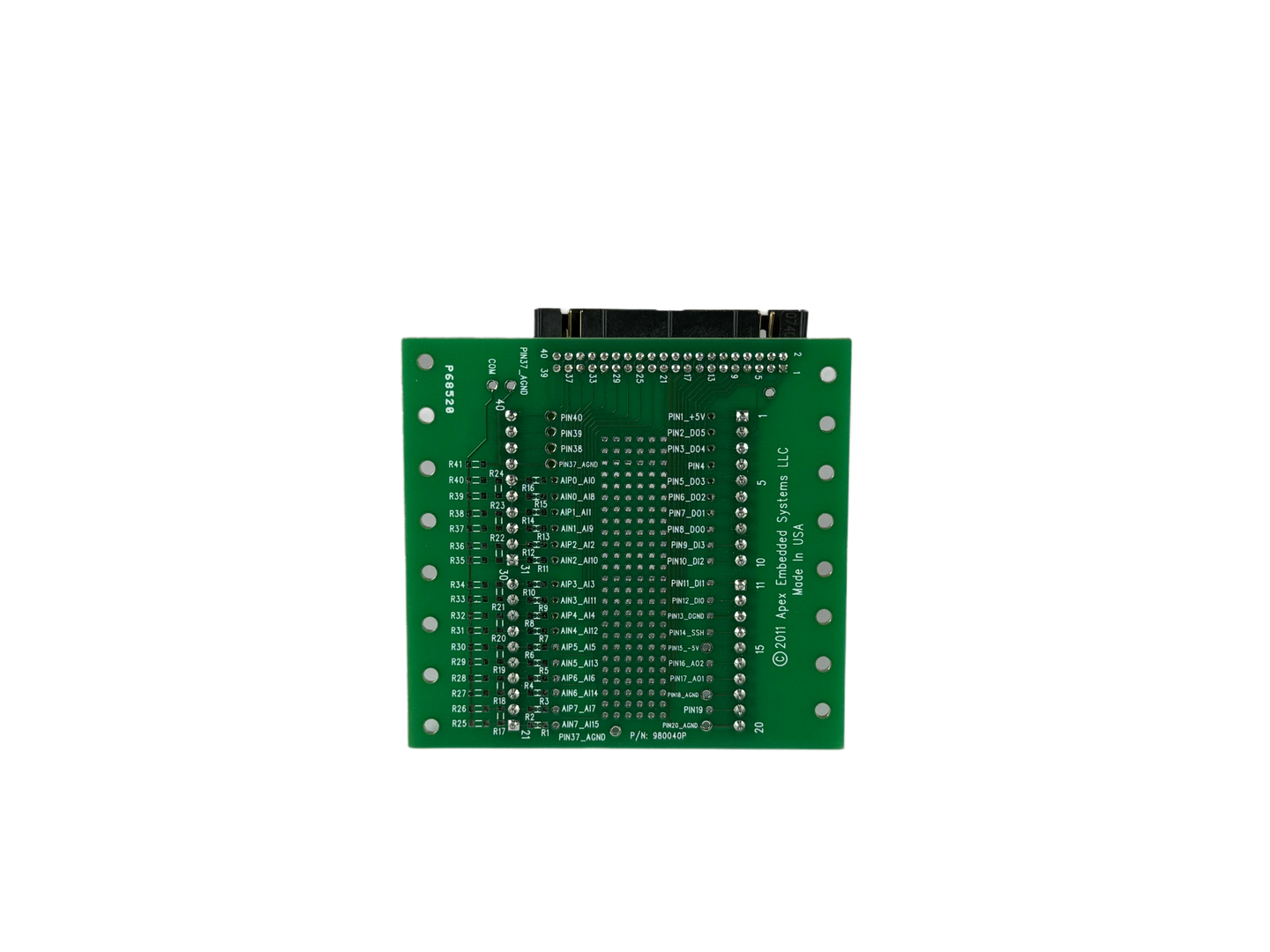

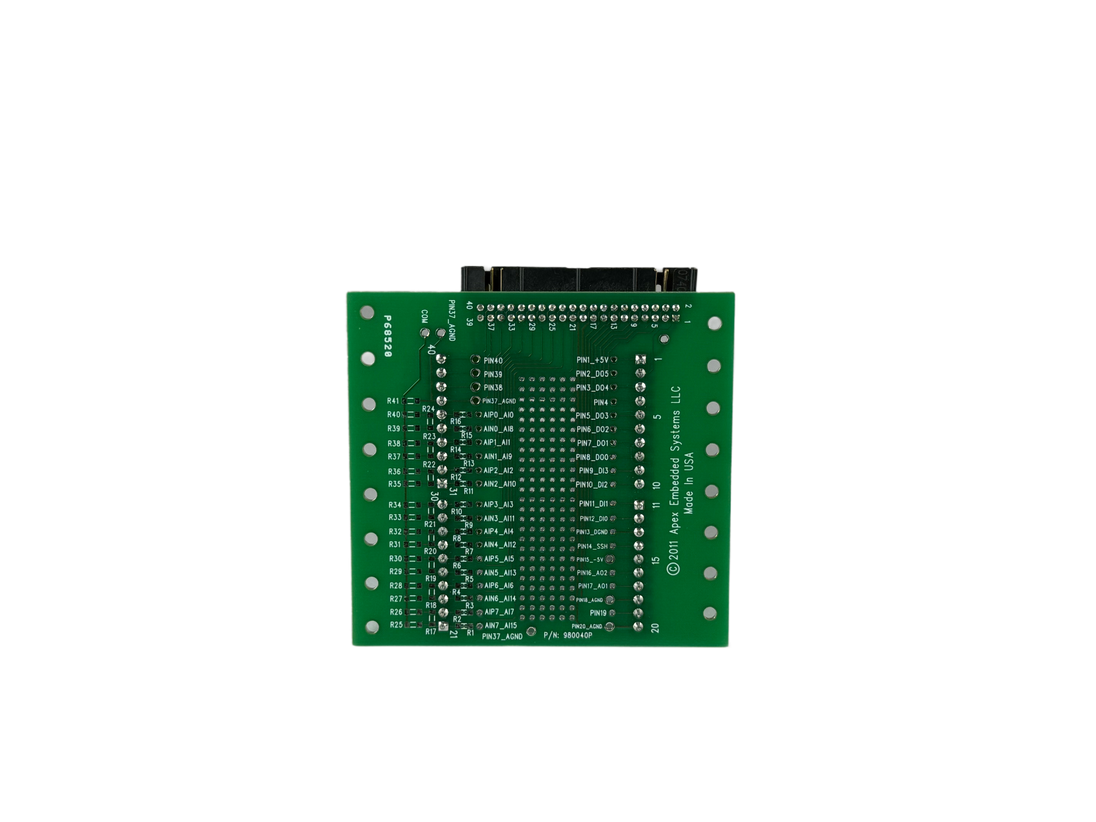

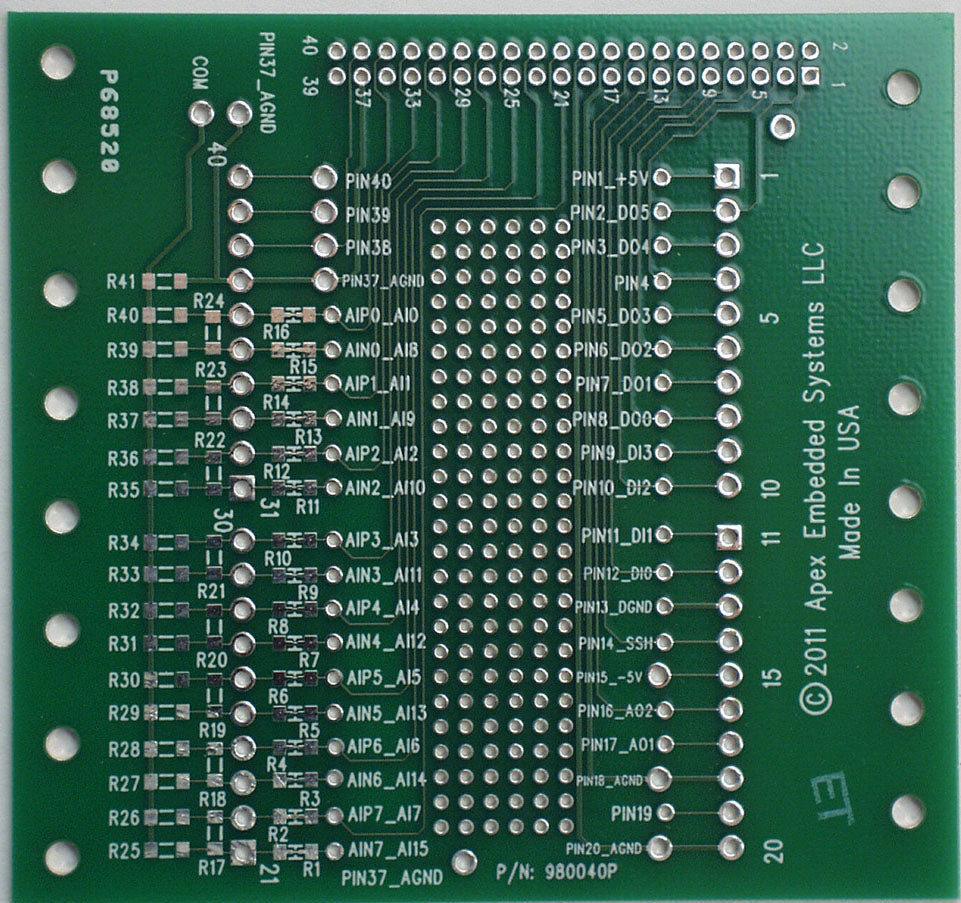

Signal access: Additional signal access is available by plated through holes clearly labeled on the board. These holes are sufficiently large to accept scope probes, wires or component leads for use within the prototyping region.
Long-Term Product Availability. Apex Embedded Systems is committed to delivering long life cycle products.
Designed for operation in harsh environments. All components and materials used in our products are designed to operate in the extended and/or mil-spec temperature range, under high shock and vibration.
Operating Temperature:-40°C to 85°C.
Designed and assembled in Wisconsin by Apex Embedded Systems. We will do whatever we can to assist you in designing in our products.
Note: we build this at time of order. If you require a different J1 connector or want something special drop us an email and will help.
